A simple inclined plane made of polished hardwood board hinged at one end to wooden base board. A 38mm plastic pulley in U-bracket is mounted on the other end of inclined plane supports masses suspended from the thread with other end tied to the object under observation. The index pointer fixed to the inclined surface moves along the arc scale attached to the baseboard and gives its angle of inclination. Includes two wooden block sliders for friction experiments, one metal roller in bracket with hook, and one weight pan with lightweight cord for suspension.

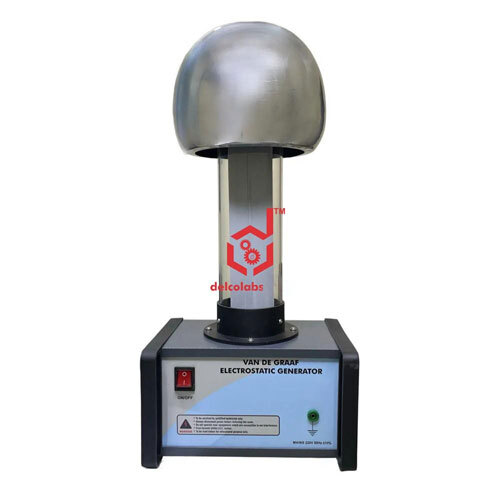

Useful for electrostatics experiments, where continuous source of high voltage is needed. A motor driven assembly encased in a sturdy metal box. The motor driven lower roller rotates the upper roller assembly located on top of the insulated Perspex pipe through a removable flat rubber belt. The continuous rotation of rubber belt results in accumulation of charge on the one piece near spherical metallic dome, charge being transferred continuously from rubber belt through charge collecting combs. Specially designed dome, with smooth and polished surface free of any surface imperfections, and without any sharp corner or edge to minimize charge leakage. The motor operates on AC mains 220-240V, 50/60Hz, fused input through a 3-Core mains cable. Provided with indicator type ON/OFF switch. On bringing earthed discharge sphere, sufficiently close to the charged dome, transfer of charge from dome to the ground takes place in the form of electric spark jumping from dome to the discharge sphere. Under favourable conditions, it can develop electric potential upto 200kV, with a spark of upto 70mm length. 4mm socket terminal provided at the bottom for earthing and another 4mm insert on top of the dome for charge transfer or attaching accessories. Provides for necessary adjustment in all the critical components. Supplied complete with discharge sphere, mounted on a long insulated handle.

12V Speed Ticker Tape Timer is a scientific instrument usedto measure the velocity of moving objects, such as balls or carts, by recordingtheir motion on a strip of paper tape. The device consists of a motor, a powersource (typically a 12V battery), a ticker tape holder, and a timer circuit.This helps to provide a simple and accurate way to measure the velocity ofmoving objects, using readily available materials and components. 12V SpeedTicker Tape Timer can also be used to study the practical applications of theseprinciples, such as the design of vehicles and machines that operate at highspeeds, and the development of safety measures to protect people and equipmentfrom the dangers of high-speed motion.

Circular Electroscope is a scientific instrument used todetect and measure electrical charges. It typically consists of a metal disk,or "cap," that is suspended by a thin wire or thread from a fixedpoint. The cap is usually made of a lightweight, conductive material such asaluminum or brass, and is designed to be sensitive to the presence of electriccharges. This can be used to investigate a variety of phenomena, such as theeffects of different materials on the buildup and dissipation of electriccharges, and the relationship between electric charges and electric fields. CircularElectroscope is a valuable tool for teaching and learning about the principlesof electrostatics, and for promoting a deeper understanding of the physicalworld around us.

For expl oring the concepts of mechanics involving linear motion on a near frictionless surface, such as acceleration, collisions (elastic / inelastic), expl osions, conservation of momentum and simple harmonic motion etc. Air track, the principal component of the apparatus, comprises of specially designed, rugged, anodized, aluminium alloy extrusion providing a straight working length of 2m, is mounted on four cast metal feet with leveling screws, two on each side positioned along the length. Two rows of fine holes provided on each side all along the length of the track through which jets of the air emanate to form air cushion on which the vehicles float under virtually frictionless conditions. One end of the track has an air inlet tube connection for compressed air supply. The track also has a 0-200cm scale graduated in millimeters for measuring distances and recording positions. The kit includes various gliders, which float to and fro on the air cushion, together with a large number of attachments to permit a comprehensive range of experiments. The complete apparatus including Air Track and attachments (accessories as per Cat No. 5238) are packed in kit form.

Linear Air Track is supplied complete with following accessories:

2 large vehicles (mass 400g, length 215mm)

1 small vehicle (mass 200g, length 100mm)

2 magnetic buffers (25mm diameter)

2 Plasticine holders (20mm diameter) with central hole

4 catapults (45mm wide) with slot for elastic band

3 steel buffers with central hole

4 elastic cords (220mm long) with plastic rings

1 reel of nylon thread

2 white plastic rods (4mm diameter 150mm long) for stroboscope photography

24 needles for use with steel buffer

20 white plain cards for interrupting light beams

1 reel rubber stand

1 pack of Plasticine

20 elastic bands

Open Type Electric Motor Demonstration is a scientific apparatusused to demonstrate the basic principles of electromagnetism and electricmotors. This typically consists of a simple motor that is open to view,allowing the user to observe the operation of the motor and the interaction ofthe magnetic fields. It can also be used to explore a variety of practicalapplications of electric motors, such as in machines, vehicles, and appliances.Open Type Electric Motor Demonstration is a valuable tool for teaching andlearning about the principles of electromagnetism and electric motors, and forpromoting a deeper understanding of the role of electricity and magnetism inthe natural world and in modern technology.

Open type simple DC motor showing conversion of electrical energy into mechanical energy. Mounted on base, works on 4-6 volts DC. With Newtons colour disc attached vertically to the motor shaft.

Used for verifying the laws of composition and resolution of forces utilizing vector diagrams of several concurrent forces. Comprising a thick wooden circular table, about 30cm in diameter and finished with scratch resistant black epoxy coating. Raised outer rim of the table has circular scale graduated 0 to 3601, and marked every 10. Table mounted on a heavy, stable cast metal tripod base through a metal pipe. Also included are four pulleys in clamp that can be attached anywhere along the rim. A detachable pin, positioned at the center of the table indicates the balancing for forces through the centering of ring, tied to the strings carrying masses and suspended through the pulleys, around it. Supplied complete with set of strings tied to the rings, center pin and 4 sets of slotted masses with hanger, each set having one hanger 100g and masses 1 each of 10, 20, 50 and 100g.

A specially designed versatile apparatus for the investigation of the wave properties, such as wave propagation, reflection, refraction, diffraction and interference. Permits demonstration with an overhead projector or use as a free standing bench model, allowing investigations to be carried out directly. Comprises a Rectangular plastic tank with clear bottom and sloped sides incorporating beach effect to eliminate unwanted reflections. The tank has four detachable legs mounted at its underside at the corners with a hole in the clear tray for water drainage. One end of the tank has clamps for supporting lamp holder with a pair of clamps on each side for mounting rippler support rods. Rippler assembly comprises of a Rectangular plastic rod with series of holes suitable for mounting spherical dippers and a low voltage DC motor having eccentric cam attached to its shaft to produce oscillatory motion. Supplied complete with following accessories:

Illuminant Assembly

Set of 4 barriers a pair of bigger L-shaped (75-25mm) and a pair of smaller L-shaped barrier (2-25mm)

1 Curved Barrier, 2.5cm high, with uniform radius of curvature

1 Hand Stroboscope

1 Convex Lens

1 Concave Lens

1 Rectangular Block

2 Spherical Dippers

Spare Elastic Cords for suspending rippler assembly

Tellurium of high-quality conceived to show on large scales the relative movements of the Sun, Earth and the Moon, and to explain a certain number of phenomena, such as the day and the night, the variation in the length and the orientation of the shades, seasons of the year, lunar phases, as well as the solar and lunar eclipses. Complete model mounted on a wooden box with on/off switch provided and operates on 220V motor.

This 100cm Optical bench is constructed with a square section aluminium pipe which riders can move along tube easily. Rail has 1cm graduations up to 100cm. Comes with 6 riders for lens and slit holder. Optical bench can be used to measure the focal length of a lens. Prefect for Physics experiments.

Set comprises of :

1 x 12V Light source

2 x Needles

2 x Lens holder

1 x White screen with holder

1 x Mirror with holder

6 x Riders

2 x Side Brackets with levelling screws.

For demonstration of the kinetic theory of gases explaining the molecular motion of the gases, thinning of air with increasing altitude, increase in pressure / volume with temperature etc. Comprises clear Perspex cylindrical tube mounted on a plastic enclosure with a rubber diaphragm at its lower end and a loose fitting metal cap at its upper end. Just underneath the diaphragm, a piston connected to a low voltage DC motor through eccentric cam, is provided for producing oscillatory motion or vibration of the diaphragm. A pair of colour-coded 4mm socket terminals provided for electrical connection. Includes metal spheres 1/8 and free-sliding cardboard discs for loading at the top.

Used for verifying the laws of composition and resolution of forces utilizing vector diagrams of several concurrent forces. Comprising a thick aluminium circular table, about 30cm in diameter and finished with powder coating paint. Raised outer rim of the table has circular scale graduated 0 to 3601, and marked every 10. Table mounted on a heavy, stable cast metal tripod base through a metal pipe, with base having three leveling screws. Also included are four pulleys in clamp that can be attached anywhere along the rim. A detachable pin, positioned at the center of the table indicates the balancing for forces through the centering of ring, tied to the strings carrying masses and suspended through the pulleys, around it. Supplied complete with set of strings tied to the rings, center pin and 4 sets of slotted masses with hanger, each set having one hanger 100g and masses 1 each of 10, 20, 50 and 100g.

For reflection, refraction, and color mixing experiments. The light box consists of a light source 12 V, 24 W lamp, producing convergent, divergent or parallel beam. On one end, an adjustable cylindrical convex lens (for parallel beam)

On the other end, a triple aperture system for color mixing experiments (lateral aperture are provided with adjustable hinged mirror). All apertures in the box are provided with vertical channels to hold slit plates and color filters. The optical set includes Acrylic Blocks, set of three mirrors, 2 slit black plates, one with three narrow slits at one end and one narrow slit at the other end. Another black plate with four narrow slits at one end, one wide slit at the other end & set of seven mounted color.

Demonstrates the linear expansion of solids and allows comparison of expansion rods of different materials. Comprises cast metal end supports mounted at each end of a horizontal metal reservoir, open at the top, that can take any liquid fuel such as Alcohol. One of the end supports has a scale with pointer needle on the outside to indicate the expansion in the rod. Expansion rods supports in the holes near top of both the end supports and can be clamped at the end opposite to that of scale pointer. Burning of fuel in the reservoir causes rod at the top to expand, which in turn pushes the pointer needle showing deflection in the scale. Includes three expansion rods, 1 each of brass, Copper and aluminium.

Comprises a circular coil wound on non-magnetic bobbin of Bakelite/Plastic about 160mm in diameter mounted vertically on a non-magnetic, cast metal base, with the coil width very small as compared to its diameter. A compass box (magnetometer) is located at the center of the coil to make its needle experience uniform magnetic field due to current in the coil. The coil consists of three windings of enameled Copper wire of different thicknesses one each of 2, 50 and 500 turns. A circular platform on base carries a set of four socket terminal for connection to the coils and are marked for each coil.

Ray Optics Box - High Precision Optical Experiment Equipment

The Ray Optics Box is a high quality laboratory instrument designed for demonstrating and analyzing fundamental principles of light such as reflection, refraction, and ray behavior. It is widely used in physics laboratories, educational institutions, and research environments.

Product Description

The unit features a black finished metal enclosure that minimizes internal light reflection, ensuring clear visibility of light rays during experiments. It is equipped with a 12V 24W straight filament lamp for consistent and bright illumination.

The lamp holder is mounted on a sliding metal bridge with 1 meter twin flex, allowing smooth adjustment to produce parallel, converging, or diverging light rays as required.

The enameled steel body is designed with multiple slots to support cylindrical lenses and a triple slit screen. Additional slots are provided for inserting filters and other optical accessories, making the unit highly adaptable for various experimental setups.

The box is supplied complete with lamp and triple slit, while lenses and filters are not included.

Key Specifications

Body Material: Mild Steel with Enamel Coating
Finish: Black
Light Source: 12V 24W Straight Filament Lamp
Adjustment: Sliding Lamp Holder
Cable Length: 1 Meter Twin Flex
Slots: For cylindrical lens, triple slit, and filters
Dimensions: Approx 182 x 61 x 115 mm
Included: Lamp and Triple Slit
Not Included: Lenses and Filters

Key Features

Durable metal construction
Adjustable light beam control
Clear visibility due to black finish
Multi slot design for flexible use
Suitable for laboratory and educational applications

Applications

Physics laboratory experiments
Light reflection and refraction demonstration
Optical ray studies
Educational and research use

This high quality Inclined plane has a solid aluminum construction, comprises of a pulley which can be adjusted. The length of the plane is 480x70mm approx. and has a protractor for angle measurements. A very useful apparatus to Investigate acceleration, friction, gravity, Galileos free-fall experiments. Complete with roller, pan and other accessories.
