Wimshurst Electrostatic Generator

Name: Wimshurst Electrostatic Generator
Brand: DIVYANSH EDUCATIONAL & LABORATORY PRODUCTS
Price: 60.0 USD
Availability: InStock

Price 60.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 1 Piece

Wimshurst Electrostatic Generator Specification

Application
Educational demonstrations, science experiments, physics teaching

Voltage
Up to 70,000 Volts (sparking potential)

Operate Method
Hand-cranked manual operation

Material
Acrylic discs, metal rods, wooden base, rubber belt

Capacity
High voltage, low current electrostatic generator

Dimension (L*W*H)
Approx. 36 cm x 20 cm x 40 cm

Usage
High-voltage demonstration, charge separation

Product Type
Electrostatic Generator

Color
Silver and Transparent with Wooden Base

Power
Manual hand crank

Weight
About 2.5 kg

Classification
Physics Laboratory Apparatus

Base Material
Sturdy polished wood

Disc Diameter
Approx. 30 cm

Brush Material
Flexible Metal Wire

Number of Discs
2

Output Terminals
Two insulated metal terminals for spark demonstration

Maintenance
Low, with occasional cleaning of discs and brushes recommended

Instruction Manual
Included

Electrode Type
Adjustable metal electrode collectors

Suitability
Ideal for secondary school and university physics labs

Drive Mechanism
Double belt drive with insulated pulleys

Wimshurst Electrostatic Generator Trade Information

Minimum Order Quantity
1 Piece

FOB Port
New Delhi

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Australia, Central America, North America, Middle East, Africa, South America, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO:9001-2015

About Wimshurst Electrostatic Generator

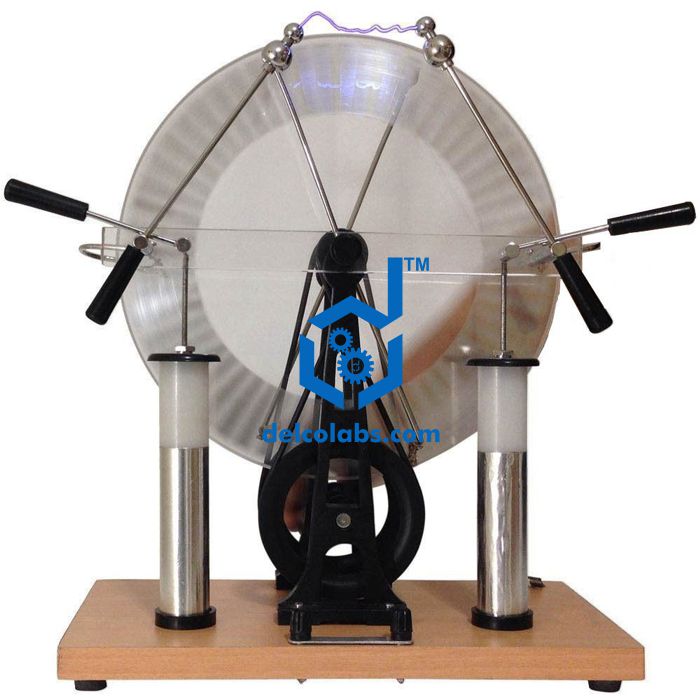

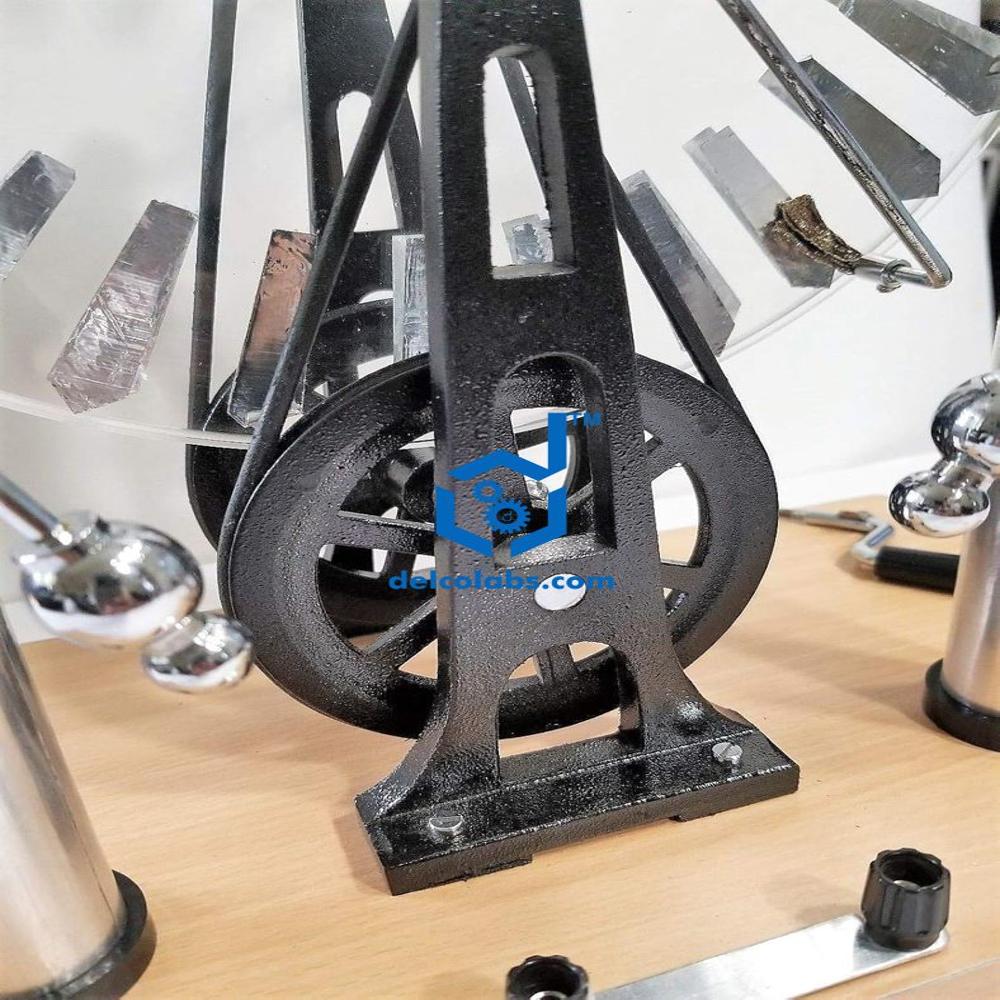

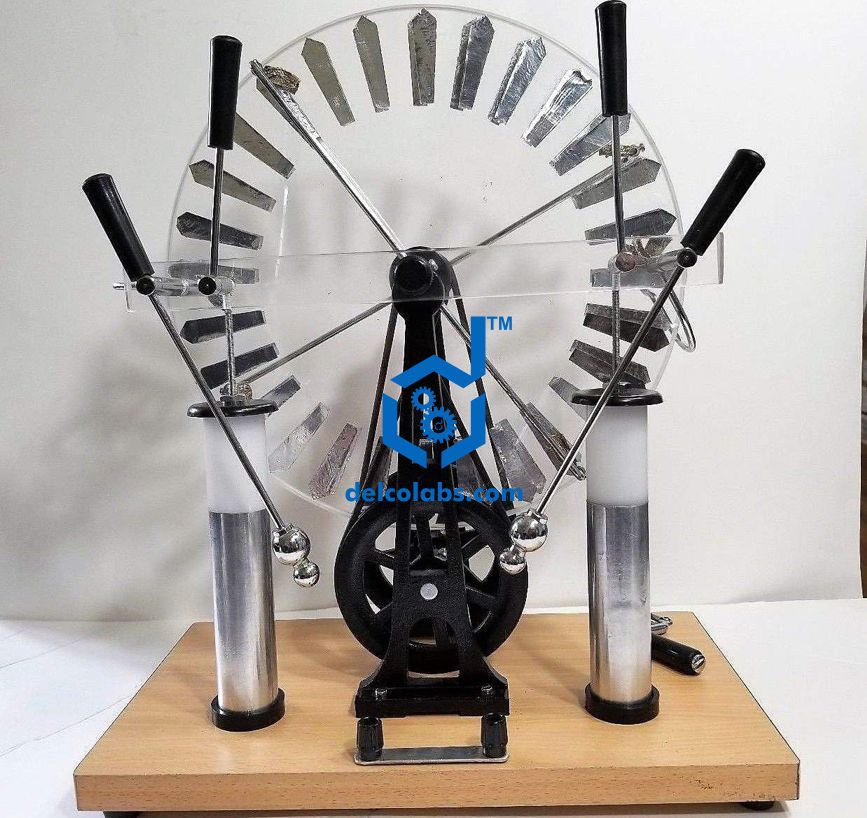

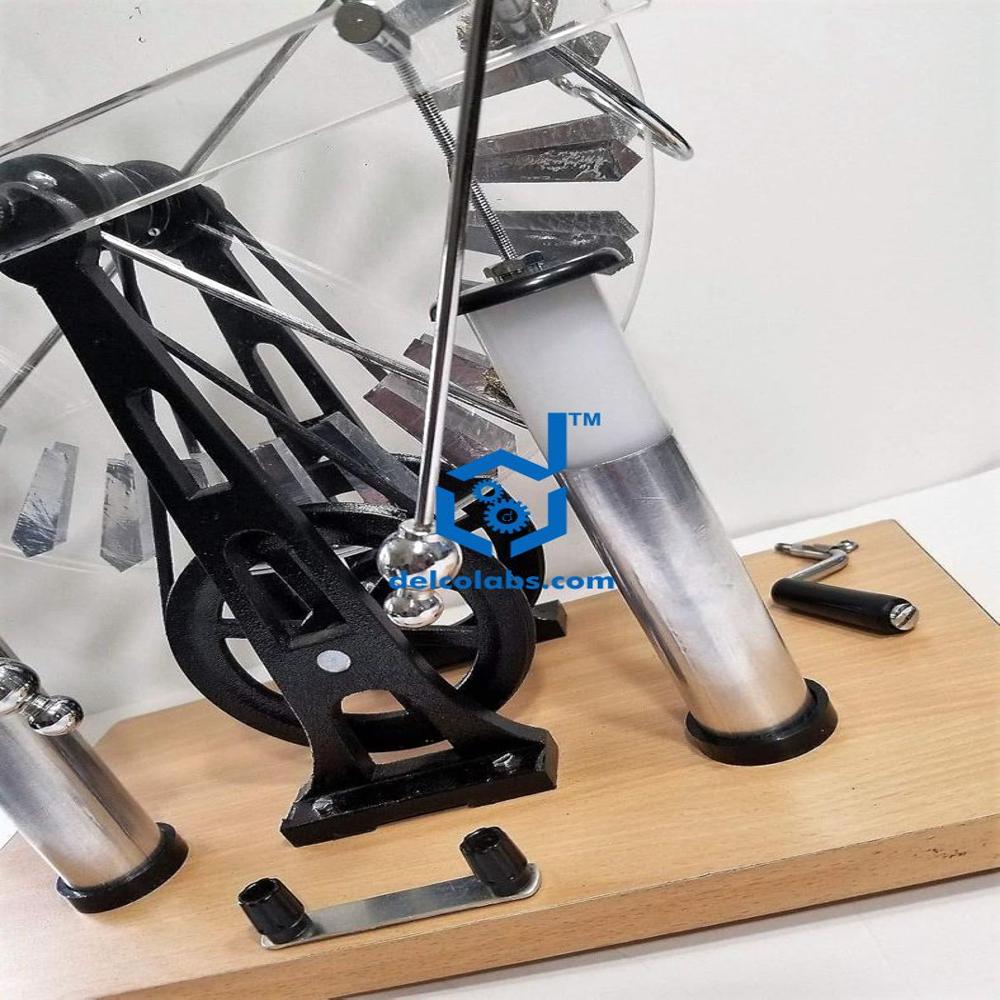

A traditional device capable of generating high electrostatic potentials that can produce spark of length up to 3 under favorable weather conditions. Equipped with two clear acrylic plates, each of diameter about 12 and having aluminium sectors permanently pasted radically along the rim. Both the plates mounted parallel to each other and rotate in opposite direction through a belt-pulley arrangement. Pulley on one wheel has handle for manual rotation. A set of charge collecting combs is mounted towards either end of a horizontal insulating beam, together with the adjustable spark gap arms, the latter equipped with small metallic sphere discharger at one end and long insulating handle adjustment at the other end. The charge can be stored in a pair of high capacity Leyden jar capacitors that can be connected or disconnected as desired. When connected to the Leyden jars through a pair of levers, the spherical dischargers starts accumulating the charge and transfer of charge from one discharger to other takes place in the form electric spark jumping from one sphere to other as a consequence of build-up of sufficiently high potential difference across the two spheres. The spark produced intermittently by the continuously rotating plates. Complete apparatus is mounted on a well insulated base that also carries a pair of earthing terminals for the Leyden jars.

High-Voltage Demonstrations Made Easy

With its manually operated design and robust construction, this Wimshurst Generator is tailored for routine educational use. Instructors can clearly demonstrate electrostatic principles, spark formation, and charge separation in classrooms or laboratory settings. Its intuitive operation and visible components make it ideal for engaging physics demonstrations.

Built to Last, Simple to Maintain

Constructed with durable acrylic discs, metal rods, and a polished wooden base, the generator is engineered for stability and longevity. Maintenance is minimal-simply clean the discs and brushes occasionally to ensure optimal performance. The included manual offers guidance, making care and operation straightforward even for beginners.

FAQ's of Wimshurst Electrostatic Generator:

Q: How does the Wimshurst Electrostatic Generator produce high-voltage sparks?

A: The generator creates high-voltage sparks through manual rotation of its dual acrylic discs, which transfer and separate charges using flexible metal wire brushes and adjustable electrode collectors. This induces a potential difference between two insulated metal terminals, resulting in visible electrical discharges.

Q: What are the main applications of this Wimshurst Generator?

A: This generator is primarily used in physics laboratories for educational demonstrations, science experiments, and teaching about static electricity, charge separation, and high-voltage phenomena at the secondary school and university level.

Q: When should I perform maintenance on the generator?

A: Maintenance is typically required only occasionally. The discs and brushes should be cleaned when performance seems diminished, or if visible dust and debris accumulate. This ensures efficient operation and reliable demonstrations.

Q: Where is this generator best suited for use?

A: The generator excels in physics labs, science classrooms, and university demonstration halls, offering both students and educators a hands-on tool for exploring electrostatic principles. It's designed for both educational and experimental settings.

Q: What process should I follow to operate the device safely?

A: To operate, secure the generator on a flat surface, rotate the hand crank to spin the discs, and observe spark formation at the insulated metal terminals, taking care to follow the instructions in the manual for safety. Avoid touching exposed terminals during operation.

Q: What are the benefits of using a manual Wimshurst Generator for teaching?

A: It offers a tangible and interactive way to visualize static electricity and high-voltage effects, enhancing engagement and understanding. Its manual operation and transparent design allow students to see every step of the process.
