Van de Graaff Generator Motorized

Name: Van de Graaff Generator Motorized
Brand: DIVYANSH EDUCATIONAL & LABORATORY PRODUCTS
Price: 45.0 USD
Availability: InStock

Price 45.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 2 Pieces

Van de Graaff Generator Motorized Specification

Operate Method
Motorized (electrical motor driven)

Application
Industrial

Weight
Around 5 kg

Dimension (L*W*H)
Approx. 32 x 18 x 62 cm

Capacity
Suitable for classroom demonstration

Power
AC powered

Product Type
Ticker Tape Timer AC

Material
Mild Steel

Color
Blue

Voltage
Up to 200,000 Volts

Classification
Electrostatic Physics Apparatus

Usage
Laboratory

Accessories Included
Discharge electrode, power cord

Output Current
Very low (microampere range)

Belt Material
High-grade insulating rubber

Base Material
Sturdy non-slip plastic

Motor Type
Electric Motor, 220V/110V

Dome Diameter
Approx. 200 mm

Operating Environment
Indoor, dry conditions

Safety Features
Provides spark gap; avoids direct contact

Noise Level
Low

Van de Graaff Generator Motorized Trade Information

Minimum Order Quantity
2 Pieces

FOB Port
New Delhi

Payment Terms
Telegraphic Transfer (T/T)

Supply Ability
500 Pieces Per Month

Delivery Time
4 Days

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO-9001:2015

About Van de Graaff Generator Motorized

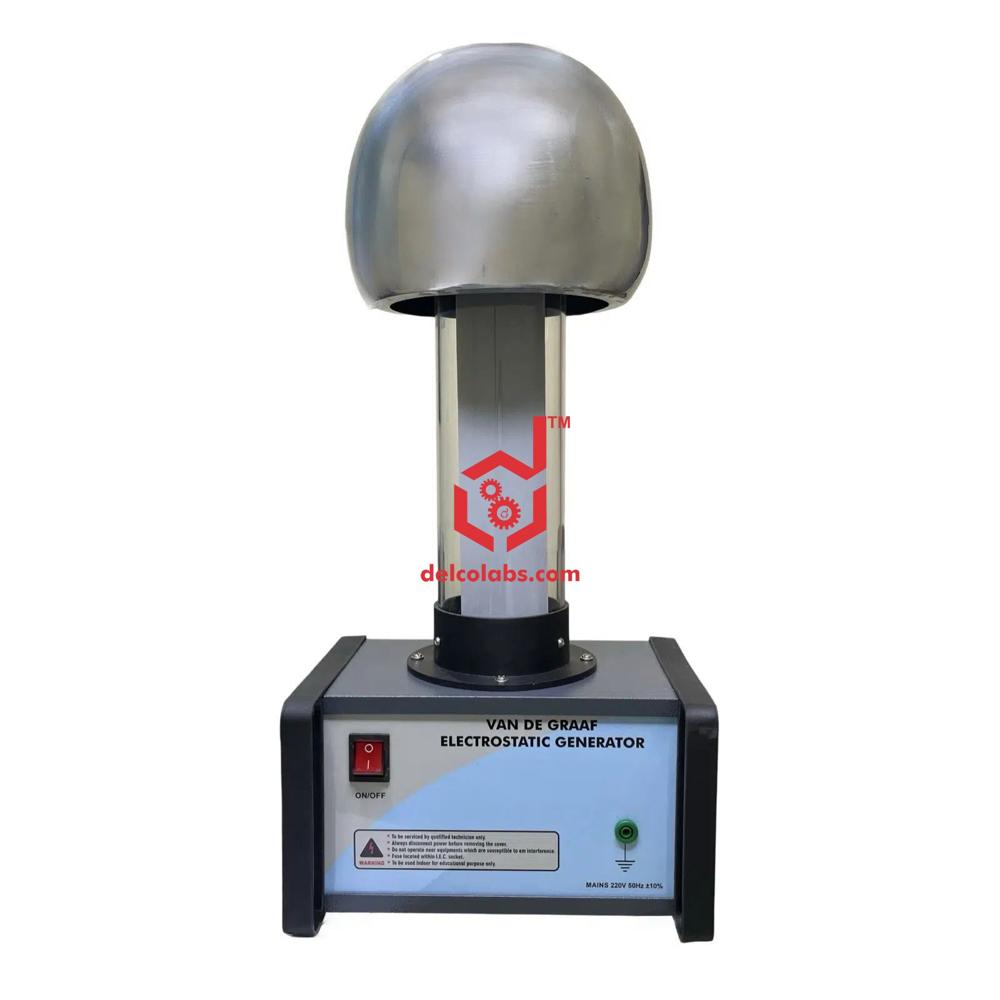

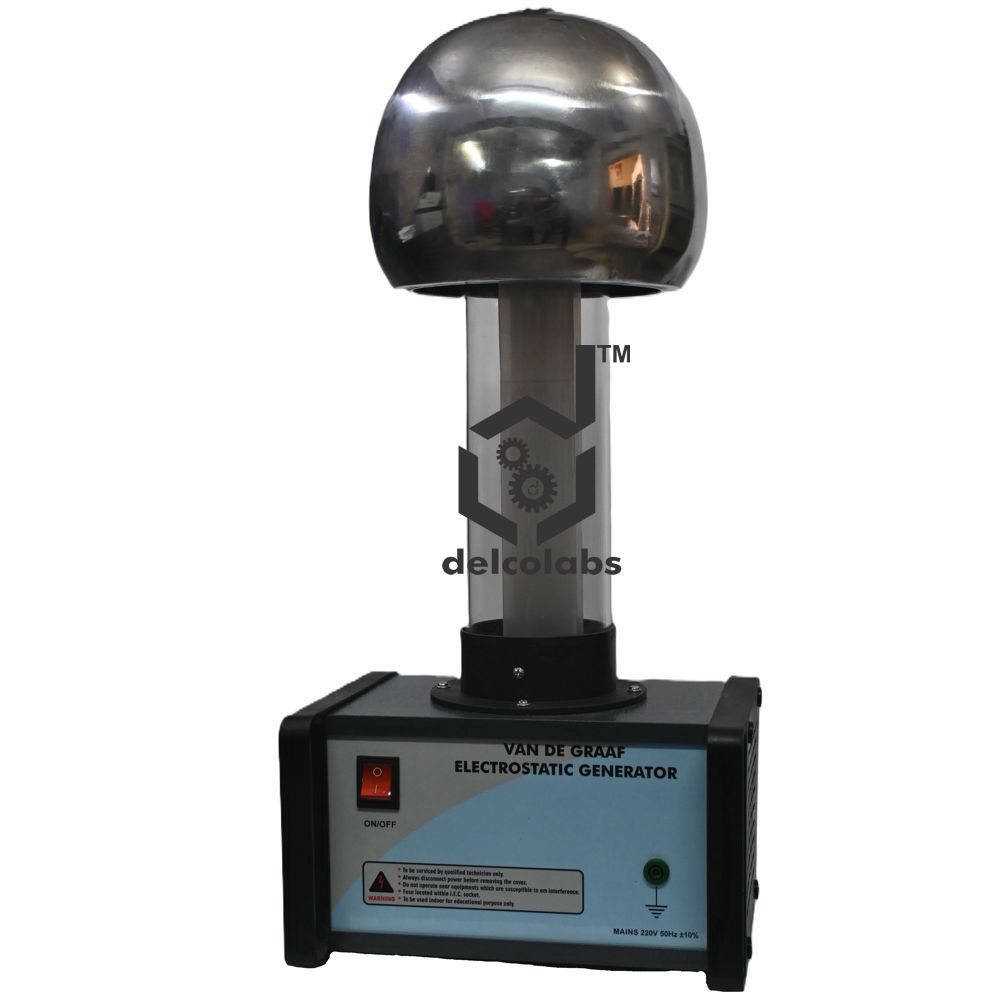

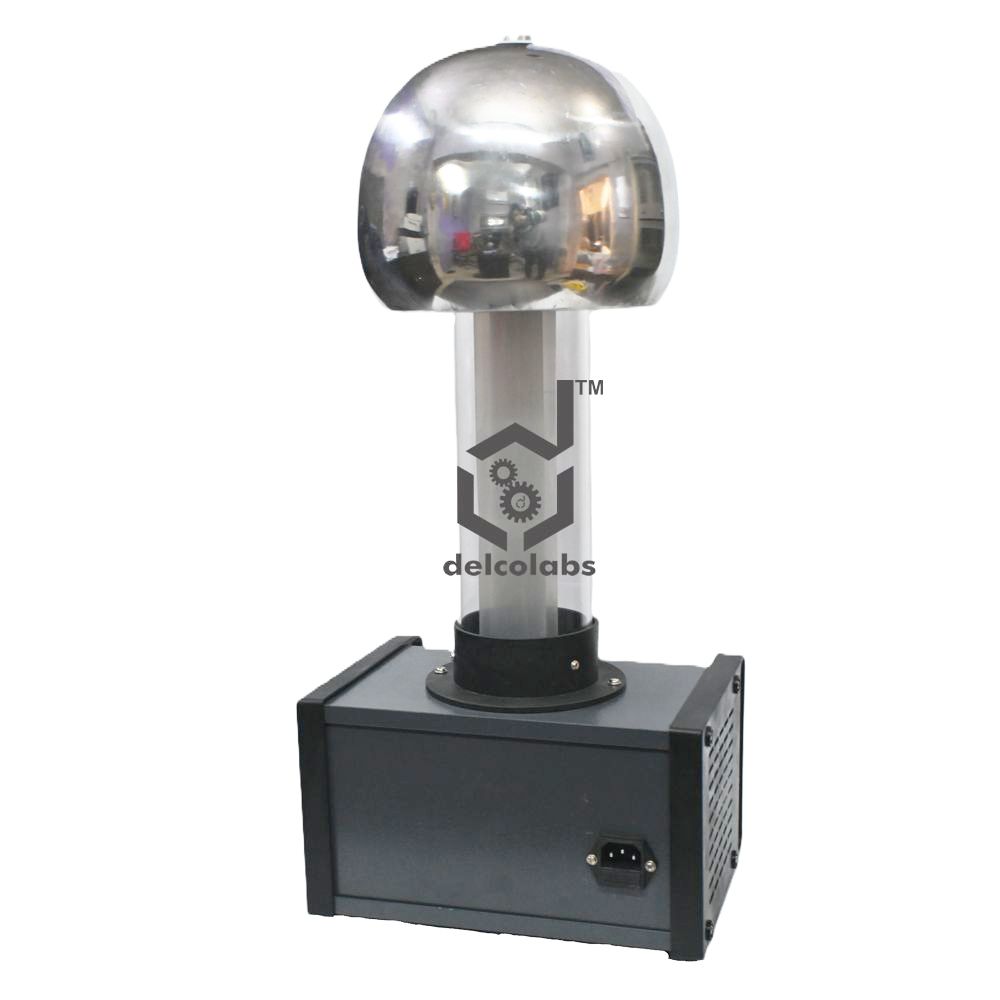

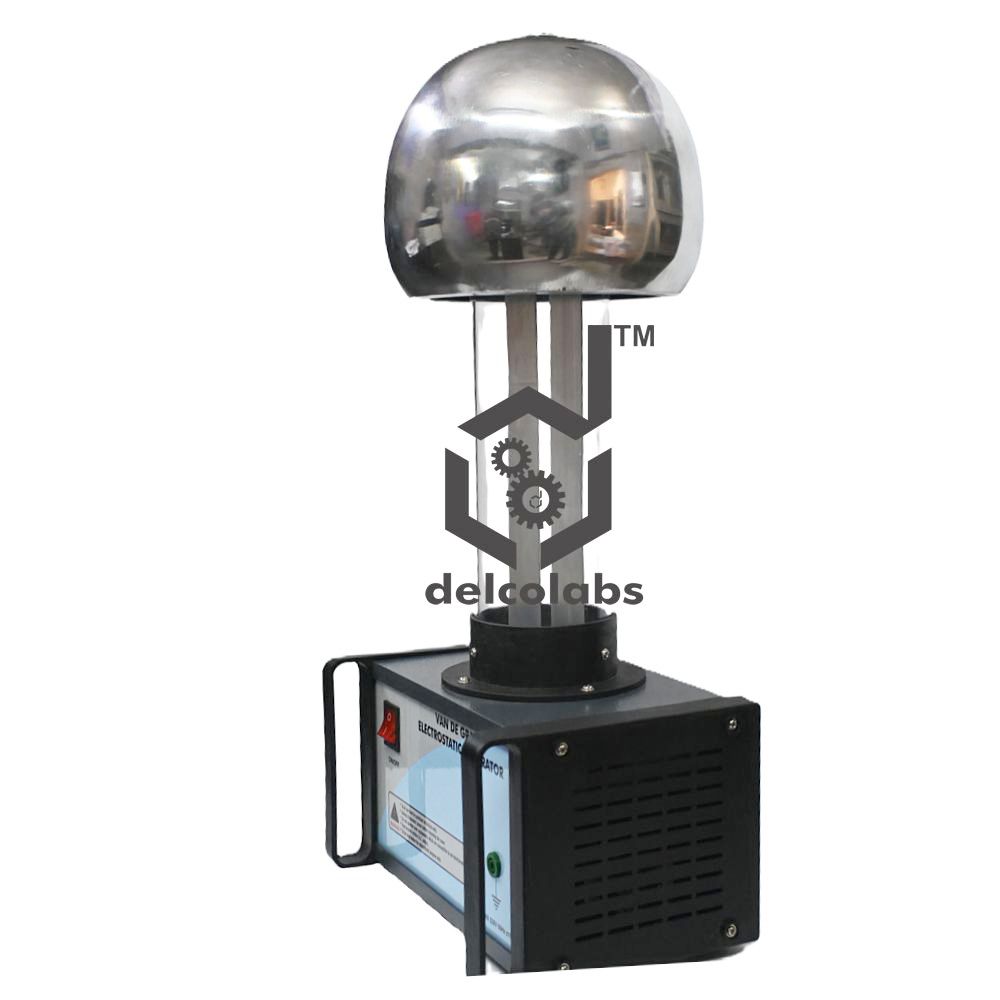

Useful for electrostatics experiments, where continuous source of high voltage is needed. A motor driven assembly encased in a sturdy metal box. The motor driven lower roller rotates the upper roller assembly located on top of the insulated Perspex pipe through a removable flat rubber belt. The continuous rotation of rubber belt results in accumulation of charge on the one piece near spherical metallic dome, charge being transferred continuously from rubber belt through charge collecting combs. Specially designed dome, with smooth and polished surface free of any surface imperfections, and without any sharp corner or edge to minimize charge leakage. The motor operates on AC mains 220-240V, 50/60Hz, fused input through a 3-Core mains cable. Provided with indicator type ON/OFF switch. On bringing earthed discharge sphere, sufficiently close to the charged dome, transfer of charge from dome to the ground takes place in the form of electric spark jumping from dome to the discharge sphere. Under favourable conditions, it can develop electric potential upto 200kV, with a spark of upto 70mm length. 4mm socket terminal provided at the bottom for earthing and another 4mm insert on top of the dome for charge transfer or attaching accessories. Provides for necessary adjustment in all the critical components. Supplied complete with discharge sphere, mounted on a long insulated handle.

Engineered for Safe and Powerful Electrostatic Demonstrations

This Van de Graaff Generator combines a high-grade rubber belt and a sturdy motor, producing reliable electrostatic charges for educational and industrial uses. Its motorized operation ensures consistent voltage output, while a secure spark gap prevents direct contact with charged components. Complete with accessories and designed for AC power, this device supports clear, dynamic demonstrations of physics principles.

User-Friendly Design for Laboratory Applications

Engineered with a sturdy non-slip plastic base and mild steel components, the generator remains stable and durable during operation. Practical in size (approx. 32 x 18 x 62 cm) and weighing around 5 kg, it is easily portable within a classroom or laboratory. Its low noise level supports focused demonstrations in indoor, dry environments.

FAQ's of Van de Graaff Generator Motorized:

Q: How does the motorized Van de Graaff Generator produce high voltage?

A: The generator employs an electric motor to drive a high-grade insulating rubber belt, which continuously transports electrons to the aluminum dome, generating voltages up to 200,000 Volts. This process relies on electrostatic induction to create and store electrical charge.

Q: What safety features are included to protect users during operation?

A: To enhance safety, the generator incorporates a spark gap, which releases excess charge and prevents direct contact with the charged dome. Additionally, the output current is in the microampere range, and a discharge electrode is supplied for safe neutralization after use.

Q: When and where should this apparatus be used for optimal results?

A: The Van de Graaff Generator is intended for use indoors in dry laboratory settings, such as classrooms or research facilities. Operating it in dry conditions minimizes humidity interference, ensuring efficient charge accumulation and clear demonstrations.

Q: What accessories come with the generator, and how are they used?

A: The package includes a discharge electrode and power cord. The discharge electrode enables safe discharge of stored electricity from the dome after experiments, while the power cord connects to AC mains (220V/110V) to operate the electric motor.

Q: Who benefits from using this generator, and for what applications?

A: Physics educators, laboratory technicians, and industry professionals can utilize this device for demonstrating electrostatic phenomena, studying high-voltage effects, and conducting controlled experiments crucial for both educational and industrial applications.

Q: How should the Van de Graaff Generator be maintained?

A: Regularly clean the belt and dome with a dry, soft cloth to maintain optimal performance and prevent dust build-up. Ensure the apparatus is stored in a dry environment to protect its electrical and mechanical components from moisture-related damage.
